    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Ask Lasest Price
    Brand Name : WYYW
    Model Number : YTN-100
    Price : $9.3/pieces 200-999 pieces
    Supply Ability : 100000 Piece/Pieces per Month pressure meter for oil and gas
    Certification : CE ISO
    • Product Details
    • Company Profile

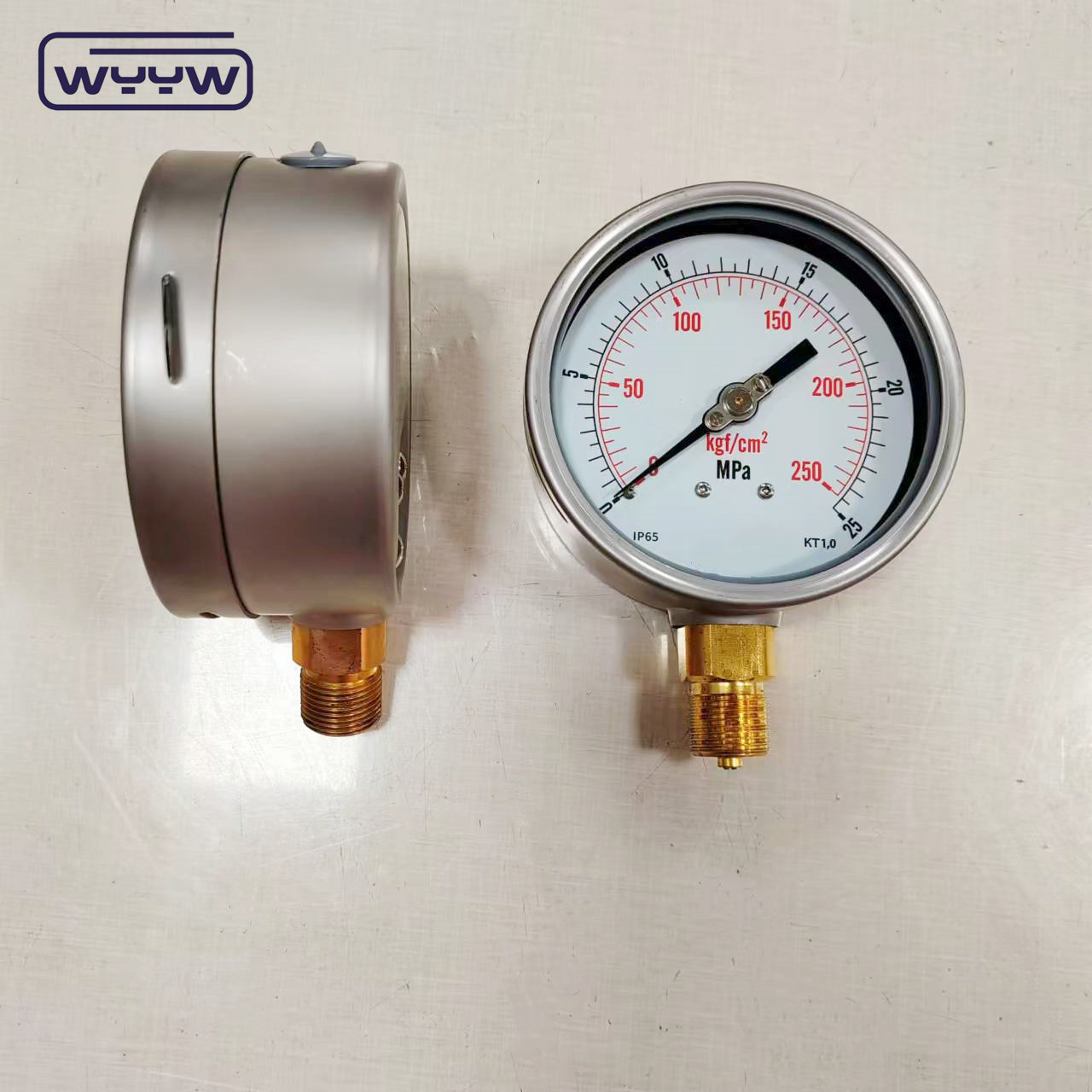

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Pressure Gauge Manometer Bezel Stainless Steel Case 0-25MPa 0-250kgf/cm2

    Product Description

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Name

    Oil filled pressure gauge

    Dials Size

    63/100mm (or dail size made as demand)

    Case

    Stainless steel case

    Pressure

    Mpa,other scale units bar, psi, kg/cm2 etc.optional

    Ring

    None

    Movement

    Brass

    Socket

    Brass

    Bourdon tube

    Bronze

    Dial plate and pointer

    Aluminum

    Window

    Glass

    Connection sizes

    1/4 for 2.5" case; 1/2 for 4",6"

    Connection threads

    Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

    Mounting

    Bottom/Back and panel

    Accuracy

    2.5(63mm)-2.5%1.6%
    4(100mm) -1.6%

    Pressure limitation

    Steady: 3/4x full scale value
    Fluctuation:2/3x full sacle value
    Short time:full scale value

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Product Application

    1.Outdoor and severe ambient and process conditions

    2.Use where harmful vibration and pulsation are present

    3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Company Information

    Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.


    Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
    pressure gauge, gas regulator, cutting torch and welding torch etc.


    Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.


    Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Packaging & Shipping

    Bezel Stainless Steel Case Manometer Gas Pressure 0-25MPa 0-250kgf/Cm2

    Advantages
    • Advanced Equipment and Professional Technology: We are dedicated to delivering high-quality gauges using state-of-the-art equipment and professional technology to customers worldwide.

    • Outstanding After-Sales Service: Our company is committed to providing exceptional after-sales support, as we aim for long-term trade partnerships.

    • Thorough Inspection Procedures with Superior Quality: All our pressure gauges undergo 100% inspection, and we are proud to hold ISO9001 and UL certifications.

    • Timely Delivery: We ensure prompt delivery to consistently meet our customers' needs.

    • Convenient Purchasing and Cost Savings: As an experienced manufacturer, we make purchasing easy and offer high-quality products at competitive prices.

    • OEM Capabilities: Over the years, we have successfully fulfilled numerous OEM orders for well-known companies in the USA and European markets.
