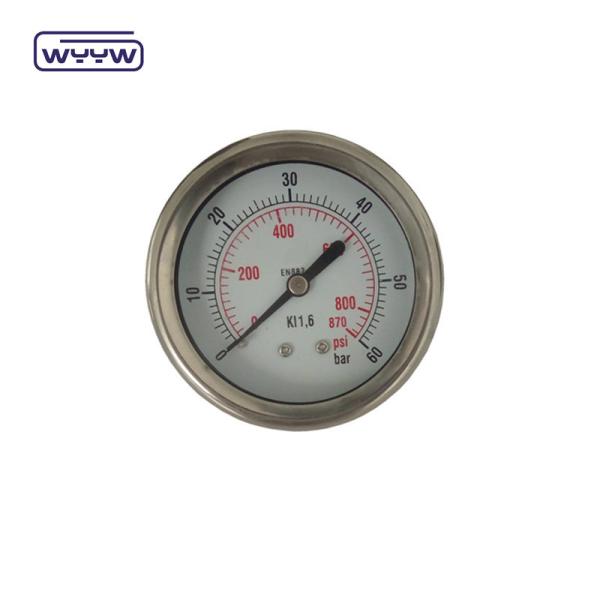

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount

Product Categories

Qingdao Dazefengyang Meter& Welding Instruments Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	WYYW
Model Number :	YTN-60
Supply Ability :	100000 Piece/Pieces per Month back mount pressure gauge
Price :	$4.50/pieces 200-999 pieces

Add to Cart

back mount pressure gauge

Name	Oil filled Vacuum Pressure Gauge Back mount
Dials Size	2.5 inch (60mm)
Case	ss
Pressure range	0 -2.5/ 4/ 6/ 10/ 16/ 25/ 40/ 60kpa,other scale units bar, psi, kg/cm2 etc.optional
Ring	Non, black steel or chrome plated
Movement	brass
Socket	brass
Bourdon tube	brass
Dial plate and pointer	Aluminum
Window	Glass or Plastic
Connection sizes	1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting	Back/ Rear
Accuracy	1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
Pressure limitation	Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount

Outdoor and severe ambient and process conditions
Use where harmful vibration and pulsation are present
Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount

Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;
Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;
Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;
Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;
OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .

Axial Glycerine 63mm Compound Pressure Gauge Hydraulic Water Pressure Meter Tester Back Mount
