    All Stainless Steel Indicator Pressure Gauge With Flange CE Approved

    Ask Lasest Price
    Brand Name : WYYW
    Model Number : YTPF-150MG
    Certification : CE
    Supply Ability : 1000000 Unit/Units per Month price of pressure indicator
    Price : $50.00/units 20-49 units
    • Product Details
    • Company Profile

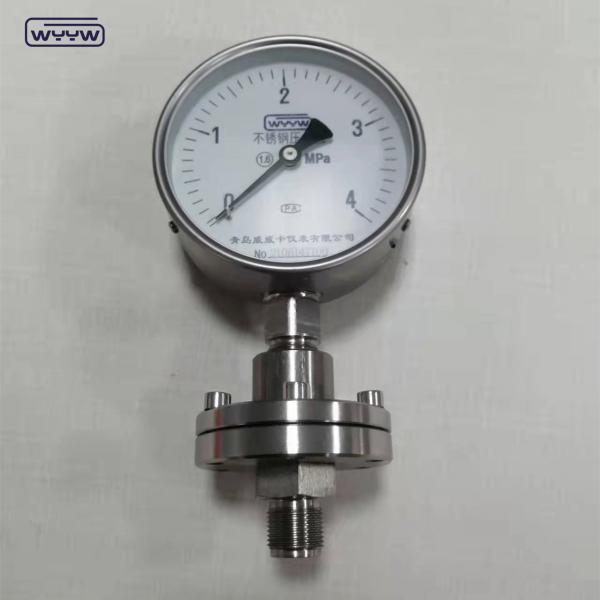

    All Stainless Steel Indicator Pressure Gauge With Flange CE Approved


    price of pressure indicator


    Product Description

    Dial size2.5"(6.3mm),4"(100mm),6"(150mm)
    Case

    Black steel , SS

    Pressure range0.1-10MPa, other scale unite available
    RingNon, roll and bayonet type
    MovementBrass, SS
    SocketBrass,SS
    Bourdon tubePhosphor bronze, SS
    DiaphragmSS316
    FlangeSS316,SS304
    Dial plate and pointerAluminum
    WindowGlass, safe glass
    Connection sizes1/4" for 2.5" case, 3/8" & 1/2" for 4" and 6" case
    Connection threadsMetric thread, NPT,BSP(G,PF),BSPT(ZG,PT)
    Flange type

    Open flange, I-beam flange,

    with angle type flange,clamp type flange

    LiquidDry, silicone, glycerine filled
    MountingBottom with connection or with flange
    Accuracy2.5"(63mm)-2.5%; 4"(100mm),6"(150mm)-1.6%
    Pressure limitation

    Steady:3/4 x full scale value
    Fluctuation:2/3 x full scale value

    Short time: full scale value

    Production Process

    All Stainless Steel Indicator Pressure Gauge With Flange CE Approved

    All Stainless Steel Indicator Pressure Gauge With Flange CE Approved

    All Stainless Steel Indicator Pressure Gauge With Flange CE Approved

    Packaging & Shipping

    All Stainless Steel Indicator Pressure Gauge With Flange CE ApprovedAll Stainless Steel Indicator Pressure Gauge With Flange CE Approved


    Company Information

    All Stainless Steel Indicator Pressure Gauge With Flange CE ApprovedAll Stainless Steel Indicator Pressure Gauge With Flange CE Approved


    FAQ

    Why Choose Us?


    1) Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

    2) Best After-sales Service : Our company provide best after-sale service all the time , forour goal is a long trade cooperation term.

    3) Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated.

    4) Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs.

    5) Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price.

    6) OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .


    If you are interested in our products, welcome to send inquiy !
