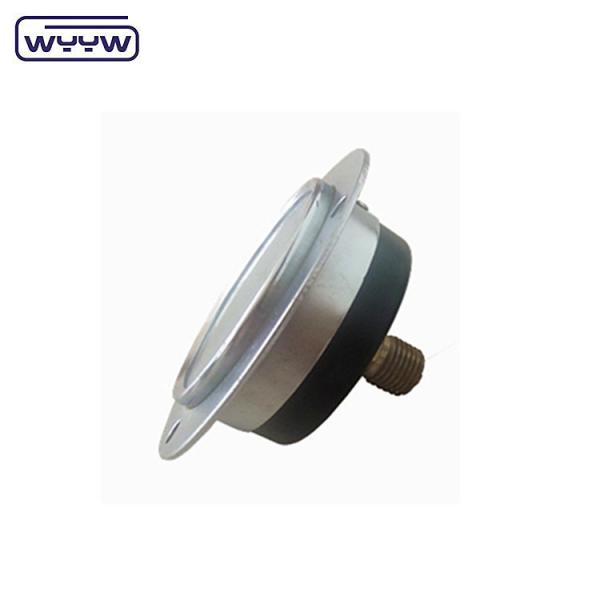

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    Ask Lasest Price
    Brand Name : WYYW
    Model Number : Y-100Z
    Supply Ability : 100000 Piece/Pieces per Month front flange pressure gauge
    Price : $3.20/pieces 1000-1999 pieces
    • Product Details
    • Company Profile

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    front flange pressure gauge4" Air Manometer Front Flange Pressure Gauge Back Mount

    Product Description

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    Name

    General pressure gauge

    Dials Size

    40/50/60/100/150mm (or dail size made as demand)

    Case

    Black steel case

    Pressure

    Mpa,other scale units bar, psi, kg/cm2 etc.optional

    Ring

    None

    Movement

    Brass

    Socket

    Brass

    Bourdon tube

    Bronze

    Dial plate and pointer

    Aluminum

    Window

    Glass

    Connection sizes

    1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"

    Connection threads

    Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

    Mounting

    Bottom (Or made as panle, bottom)

    Accuracy

    1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
    4(100mm) and 6 (150mm)-1.6%

    Pressure limitation

    Steady: 3/4x full scale value
    Fluctuation:2/3x full sacle value
    Short time:full scale value

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    Product Application

    1.Outdoor and severe ambient and process conditions

    2.Use where harmful vibration and pulsation are present

    3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    Company Information

    Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.


    Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
    pressure gauge, gas regulator, cutting torch and welding torch etc.


    Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.


    Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    Packaging & Shipping

    4" Air Manometer Front Flange Pressure Gauge Back Mount

    Advantages

    1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

    2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

    3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

    4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

    5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

    6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
