    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover

    Ask Lasest Price
    Brand Name : DZFY
    Model Number : Y-60Z
    Supply Ability : 1000000 Piece/Pieces per Month
    Price : $2.50/pieces 1000-4999 pieces
    • Product Details
    • Company Profile

    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover

    60mm pressure gauge with rubber protective cover


    Specifications

    rubber cover pressure gauge

    1. Material:Copper/SS/Aluminum
    2. D:60/100/150
    3. Range:1.5/2.5/6/15/60MPa
    4.Ce:ISO,CMC


    Applications

    Process industry, Chemical/petro-chemical, Power stations, etc.

    DESCRIPTION

    Nominal Size :

    1.5"(40mm) , 2.0"(50mm), 2.5"(63mm),

    3.0"(75mm) ,4.0"(100mm),

    Pressure Range :

    -1~0bar to 0~400bar

    Accuracy :

    ±1%, ±1.6%, ±2.5%

    Working Temperature:

    -20°c~70°c

    Case:

    Stainless steel

    Bezel :

    Stainless steel

    Bourdon tube :

    Phosphor bronze OR Stainless steel

    ≤ 60 bar: C-type

    > 60 bar: Helical type

    Connection:

    Brass Or Stainless steel

    Movement:

    Brass Or Stainless steel

    Dial:

    Aluminium

    Pointer:

    Aluminium ,black

    Window:

    Glass Or Plastic

    Thread:

    1/8",1/4", 3/8",1/2", PT,BSP,NPT etc.

    Fill:

    Glycerine(standard)

    Silicone(optional)

    Gaskets/Filling cap:

    Neoprene Or Silica gel

    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover

    OPTION

    1. With red mark adjustable pointer ,

    2. With othe unit according requirement, such as bar,psi,kg/cm2 in dial

    3. With rubber

    ORDERING INFORMATION

    Model / Nominal size / Scale range / Connection size / Options

    Note: The requirements can be customized


    Package: Each pressure gauge is packed in one paper box, then 30pcs packed in a carton box,or as customer’s request.

    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover

    Warranty: 1 year.


    About us:

    We are munufacturer of pressure gauge, pressure regulator, cutting&welding torch and nozzle etc. The company is founded in 2005, waiting for your inquiry.

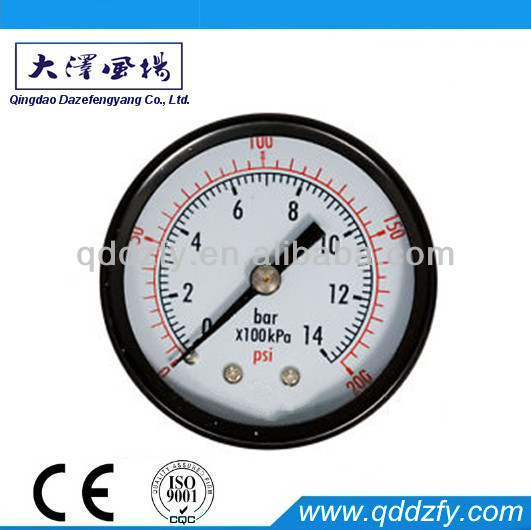

    Product show:


    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover


    Factory show:


    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover


    Certificater: ISO9001.


    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover

    60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover
